Magnesium Casting

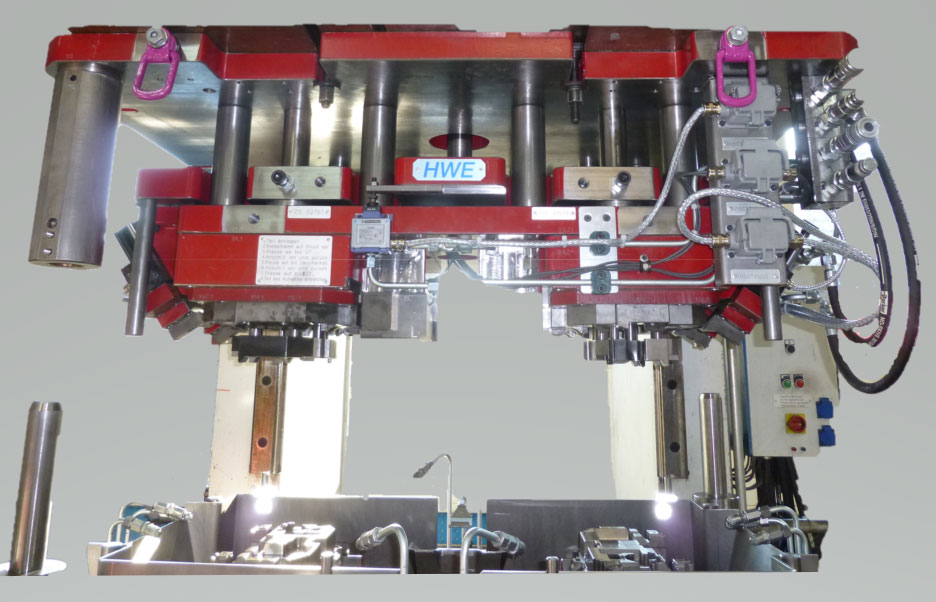

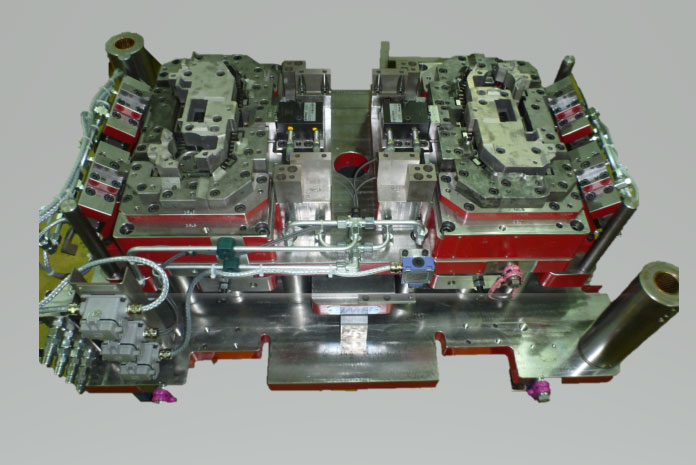

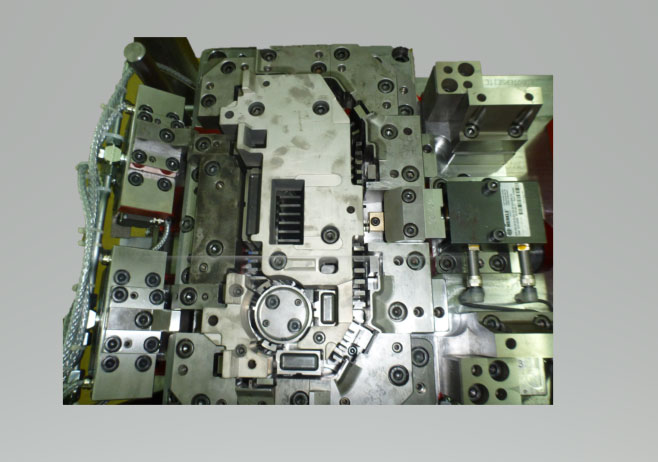

2-compartment magnesium system support
Automated cutting
Punching in main cutting direction: trimming of the outer contour as well as 110 openings
4 pieces side sliders trimming at ZHV
2 pieces side sliders trimming at lower part
For a larger view please click on the thumbnails

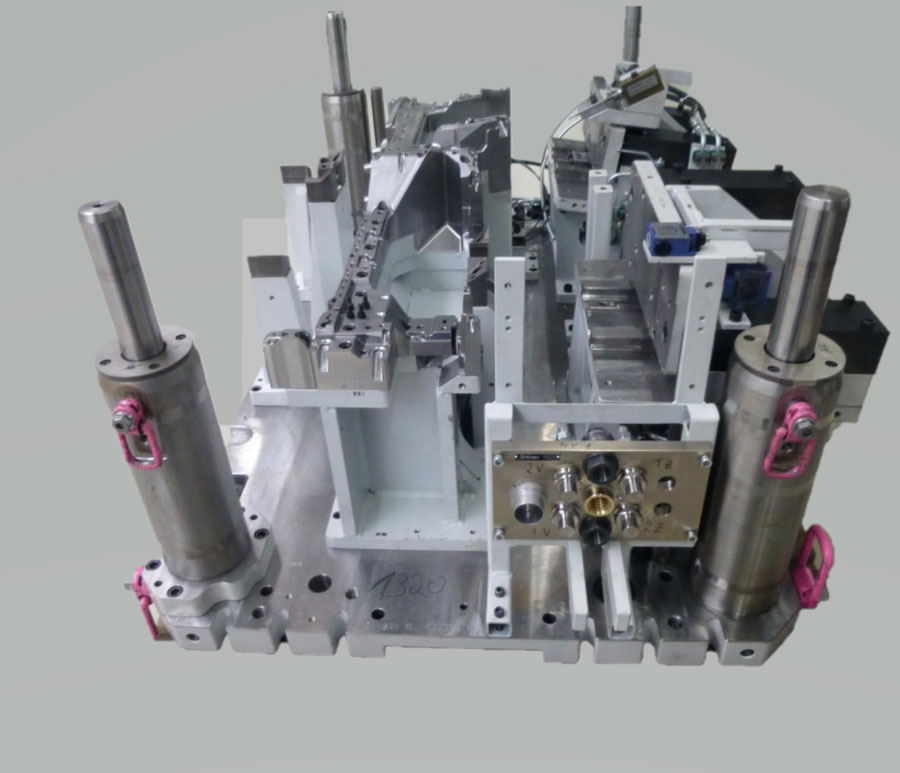

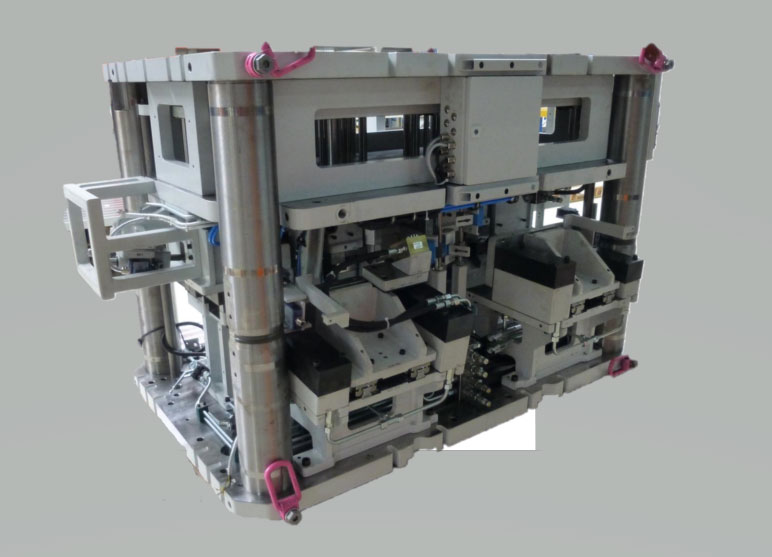

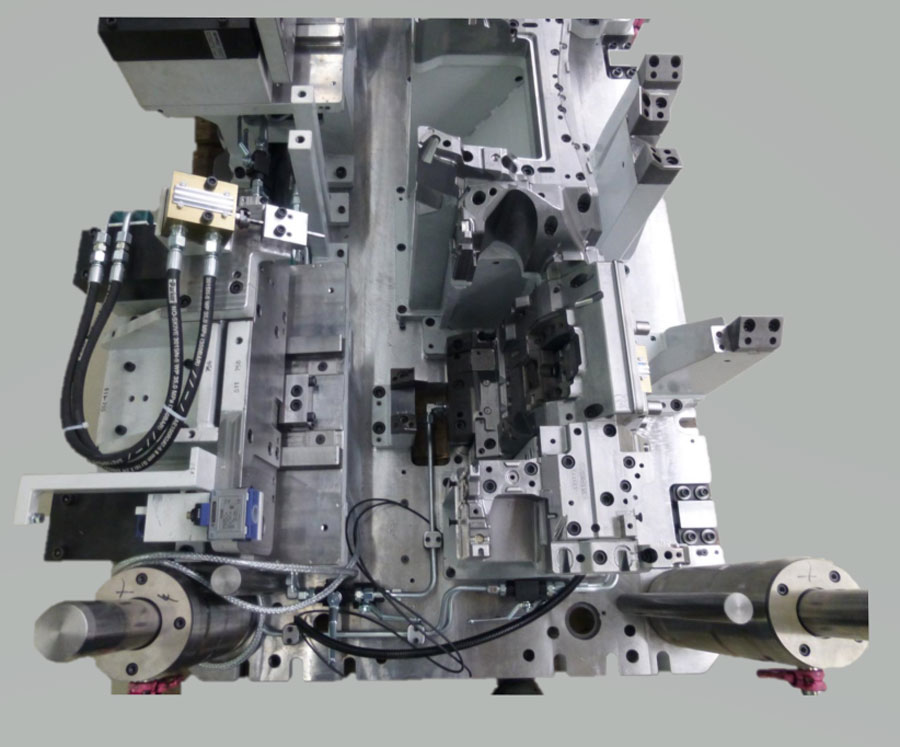

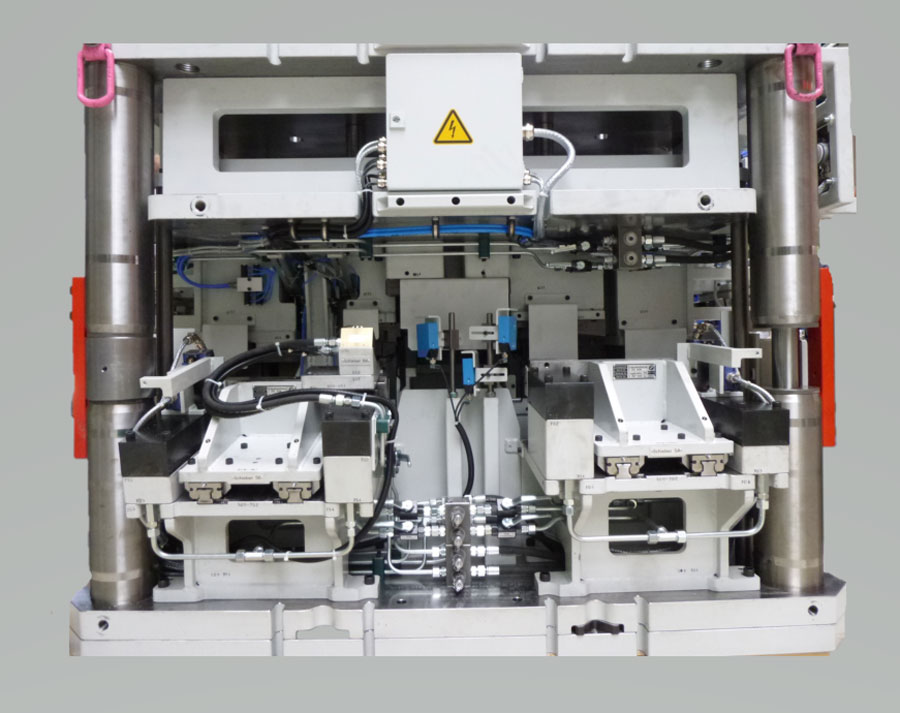

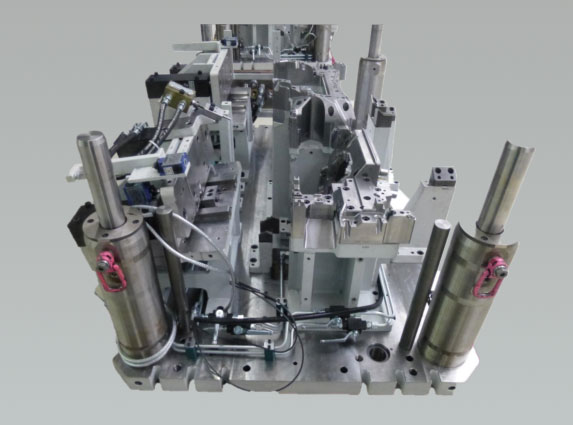

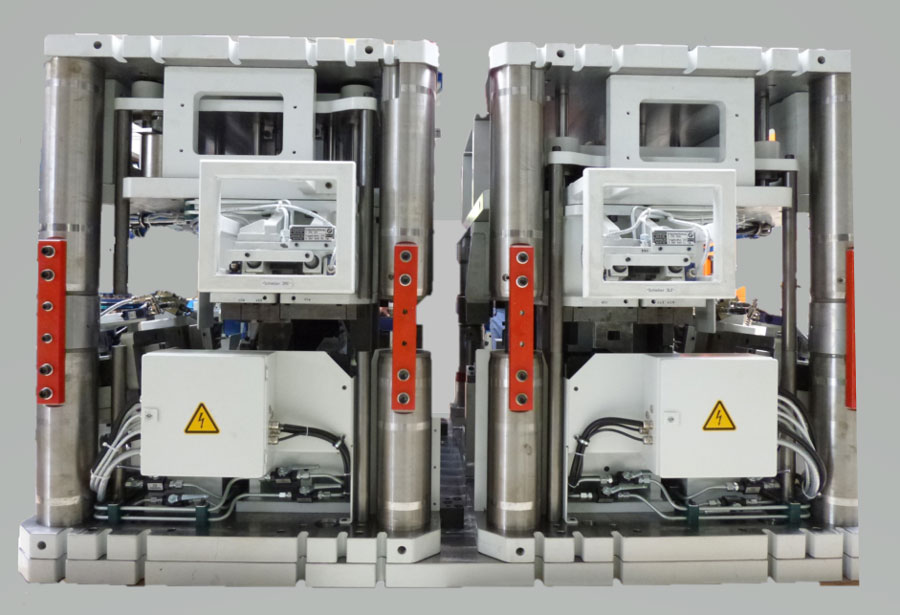

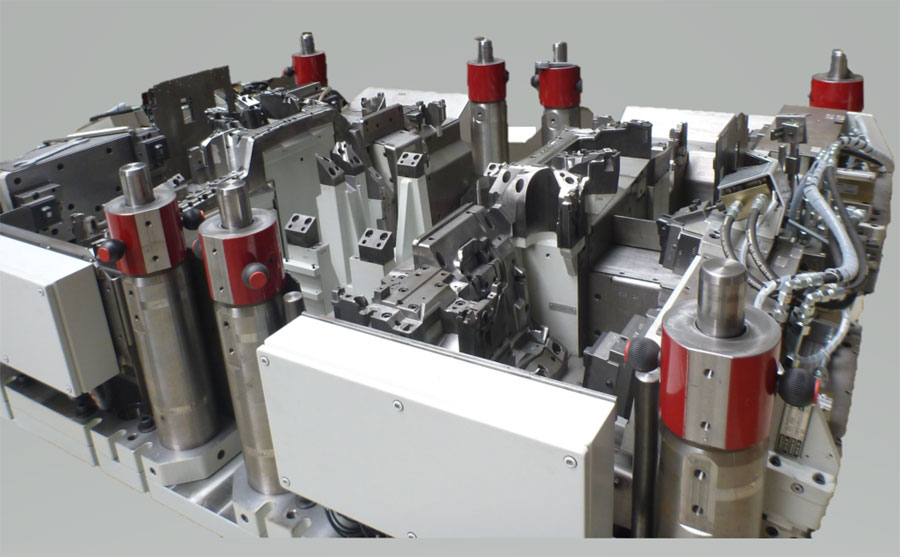

2-compartment magnesium supporting structure
Dimensions: 2460 x 2150 x 1400
Weight: 14,3 tons
Automated cutting
4 pieces linear sliders (punching of 8 dies into the full material)
10 pieces of sliders integrated on linear slider
2 pieces of sliders from receiving side
2 pieces of sliders from holder inside punching to outside
4 pieces of sliders in the tool upper part punching at lower part
